HY-JSDB-C-8140

ULTRA THIN SCISSOR LIFT

Note: According to user requirements for different voltage and frequency product (specific parameters see the equioment signs)
(Optional color)

CHARACTERISTICS

1.This kind of scissor lift is hydraulic four wheel positioning, apply to various level of automobile of professional high-precision four wheel alignment and vehicle inspection, repair and maintenance.
2.The machine‘s mainly hydraulic components selected Italy, Germany high quality imported parts assembly, adopting dual gear,  hydraulic and electrical tripling protection, safe, reliable, synchronous stable running. Using high performance plate produced.
3.Oil cylinder with upper return oil, prevent oil cylinder rust.

TECHNICAL SPECIFICATIONS

  • 4000kgLifting Capacity
  • (Main) 1750mm (Jack) 350mmLifting Height
  • 200mmMin. Height
  • 50s-60sLifting Time
  • 4500mmLength Of The Platform
  • 645mmPlatform Width
  • 3.0kw-380v or 3.0kw-220vMotor Power
  • 24MPaOil Pressure Rating
  • 0.6-0.8MPaAir Pressure
  • 2320kgWeight

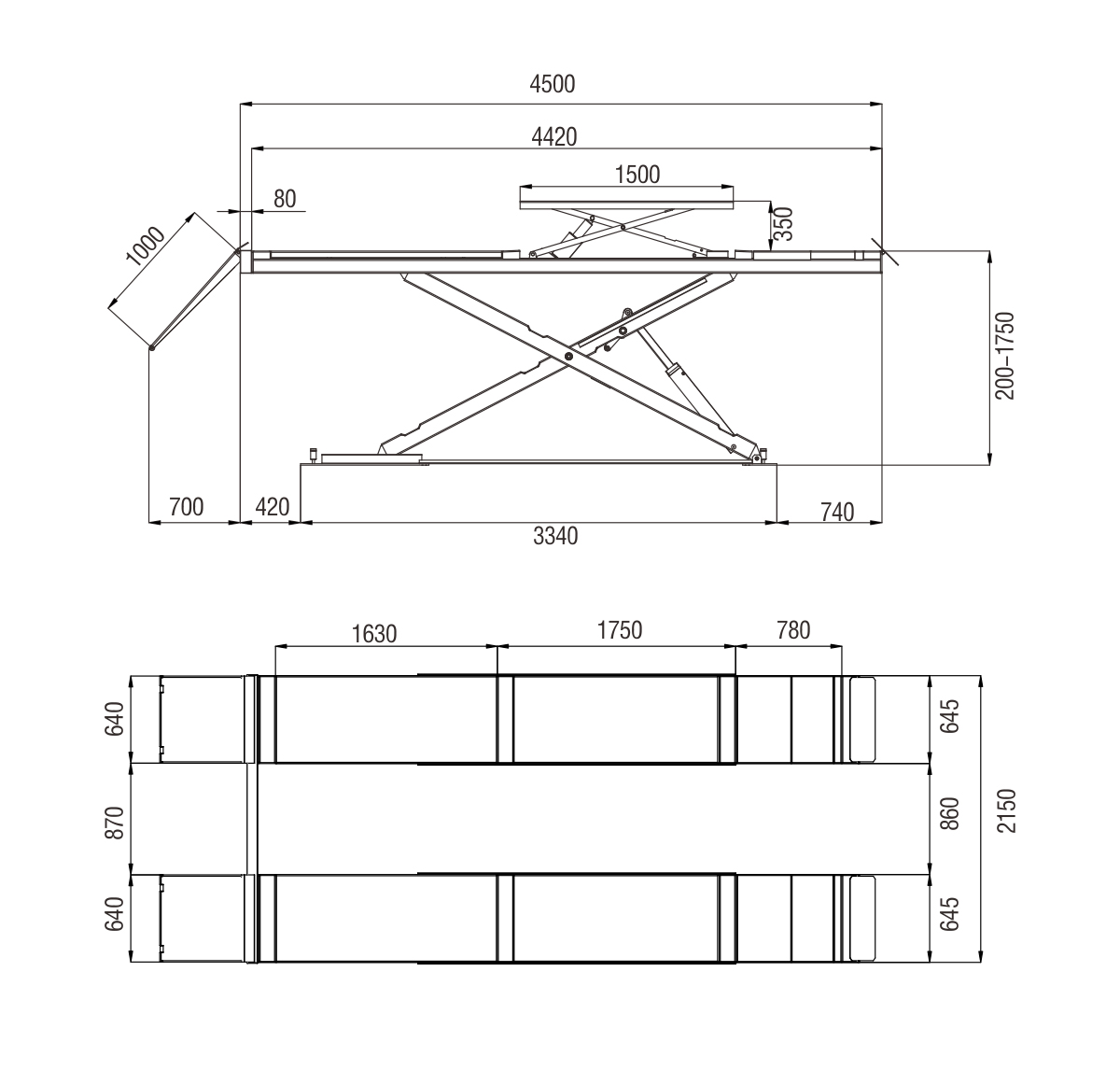

  DIMENSIONS (mm)
